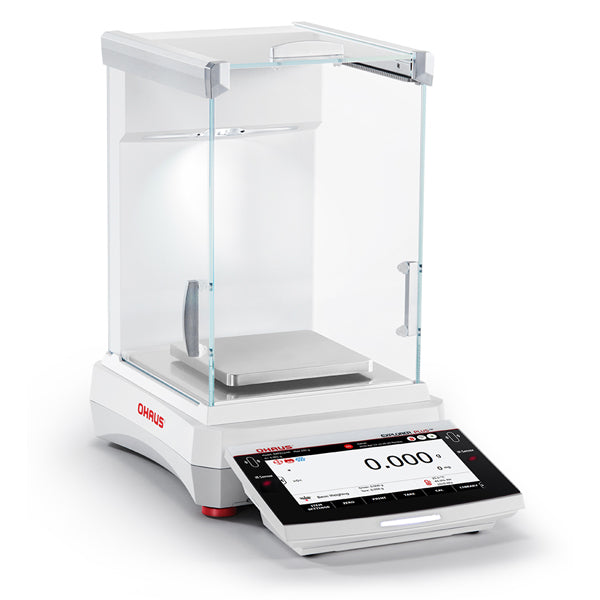

Ohaus EXP8202 8200 g x 0.01 g Explorer Plus Precision Balance
Couldn't load pickup availability
The Ohaus EXP8202 Explorer Plus Precision EXP balance offers 8,200 g capacity and 0.01 g readability for demanding laboratory and industrial weighing applications. The Explorer Plus platform combines premium weighing performance, data traceability, AutoCal automatic internal calibration, and a 7-inch color touchscreen in a durable precision balance.
Key Features
- 8,200 g maximum capacity with 0.01 g readability
- AutoCal automatic internal calibration for dependable daily performance

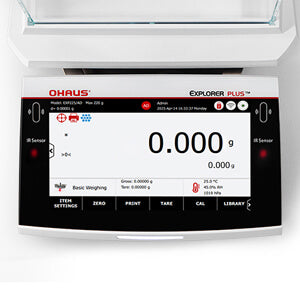

- 7-inch glass touchscreen with intuitive navigation, compliance support, and data traceability
- Large stainless steel top-loading pan for precision weighing without a draftshield
- USB, Ethernet, and RS232 connectivity with optional Wi-Fi and Bluetooth
- Application modes include basic weighing, parts counting, percent weighing, check weighing, dynamic weighing, totalization, formulation, density determination, peak hold, pipette adjustment, SQC, fill weight variation, and flow rate control
Specifications
| Item Number | 31059190 |
| Capacity / Resolution | 8,200 g x 0.01 g |
| Legal for Trade | Not Applicable |
| Pan Size | 7.9 in x 7 in (201 mm x 178 mm) |
| Internal Calibration | AutoCal - Automatic |
| Draftshield | Not Applicable |
| Stabilization Time | 1 s |
| Repeatability, typical | 0.01 g |
| Linearity | +/- 0.02 g |
| Minimum Weight | 1.4 g |
| Minimum Weight (USP, 0.1%, typical) | 14 g |
| Dimensions | 16.1 in x 3.8 in x 9 in (408 mm x 97 mm x 229 mm) (LxHxW) |
| Net Weight | 12.1 lb (5.5 kg) |
| Power | AC Adapter (Included) |
| Display | 7-inch color TFT touchscreen |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; Wi-Fi/Bluetooth available as an accessory |
| Working Environment | 50F - 86F, 80%RH, non-condensing (10C - 30C, 80%RH, non-condensing) |
| Units of Measurement | Gram; Kilogram; Milligram; Carat; Ounce; Pound; Ounce Troy; Pennyweight; Grain; Newton; Tical; Baht; Tola; Custom |
What Is Included
- Ohaus EXP8202 balance
- Stainless steel pan
- In-use cover
- AC adapter
Capacity / Resolution: 8,200 g x 0.01 g
Readability: 0.01
Maximum Capacity: 8200
Maximum Capacity in Grams: 8200
Platform Dimensions: 7.9 in x 7 in (201 mm x 178 mm)
In-Use Cover: Included
Working Environment: 50F - 86F, 80%RH, non-condensing (10C - 30C, 80%RH, non-condensing)
Units of Measurement: Gram; Kilogram; Milligram; Carat; Ounce; Pound; Ounce Troy; Pennyweight; Grain; Newton; Tical; Baht; Tola; Custom
Platform Construction: Stainless Steel
Display: 7-inch color TFT touchscreen
Communication: USB device; USB host x 2; RS232; Ethernet TCP/IP; Wi-Fi/Bluetooth available as an accessory
Battery Life: Not Applicable
Power: AC Adapter (Included)
Legal for Trade: Not Applicable
Net Weight: 12.1 lb
